Bolt Seals

bolt seal Bolt Seals

bolt seal

TOUGH CONDITIONS RESISTANT
HIGH SECURITY AND
ISO 17712:2010 COMPLIANT


These seals were especially produced for situations when high resistance is required. The bolt seals can withstand very low and high temperatures, such as -40ºC or 110ºC and severe environmental conditions. They can be personalized with letters or logo and laser marked numbering.

lacres de seguranca barreira aplicacao
Application:

  • Containers
  • Trucks
  • Measurement instruments
  • Rail cars
  • Value transportation
  • Doors
  • Drums
Features:

  • All-purpose
  • Metallic locking mechanism
  • Personalization available

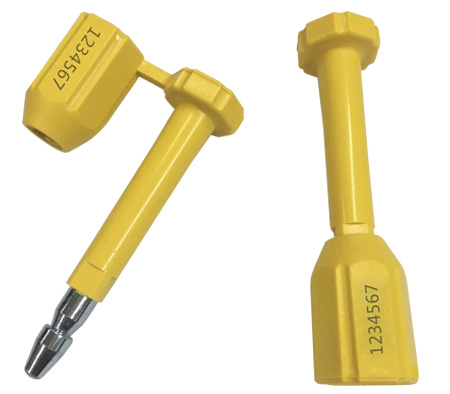

BOLT  SEALS


High security bolt seal that meets the ISO 17712 specifications. The locking mechanism is embedded in a groove in the metal bush, to enable storage and handling. Tensile resistance: 350kgf.

High security bolt seal that features a metal pin measuring 8mm in diameter, 81mm in length and its head has 19mm in diameter; and a bush covered in plastic. Pin and bush are offered together in order to enable storage and distribution. Laser marked personalization available on the bush and on the pin. Barcode is optional.

How-to-Use Price

High security RFID bolt seal that features a metal pin measuring 8mm in diameter, 81mm in length and its head has 19mm in diameter; and a bush covered in plastic. Pin and bush are offered together in order to enable storage and distribution. Laser marked personalization available on the bush and on the pin. Barcode is optional.

Price

Ordering:


STANDARD ORDERING
Quantity: 200 pieces (minimum)
Colors/codes: white, yellow and blue (W, YL and BL)
Personalization: Laser marked standard numbering and letters
Numbering: Sequential
Packaging:
a) Bolt seals: Box of  250 seals

SPECIAL ORDERING
Quantity: 1,000 pieces (minimum)
Colors/Codes: White, yellow and blue (W, YL and BL). Other colors are available under consulting.
Personalization: Laser marked numbering and/or logo
Numbering: Laser marked sequential numbering and barcode (cable seals)
Packaging:
a) Bolt seals: Box of  250 seals

High-Security C-TPAT Complaint Security Seals:
Tensile Strength: Shear Test: Bending Test: Impact Test (Room Temperature): Impact Test (Cold Temperature):
16.5 kN 8.896 kN 58.73Nm More than 5 impacts at 40.68J More than 5 impacts at 40.68J
