TOUGH CONDITIONS RESISTANT
HIGH SECURITY AND
ISO 17712:2010 COMPLIANT
These seals were especially produced for situations when high resistance is required. The cable seals can withstand very low and high temperatures, such as -40ºC or 110ºC and severe environmental conditions. They can be personalized with letters or logo and laser marked numbering.
- Measurement instruments
- Rail cars
- Value transportation
- Adjustable size (Aluminum and Safelock)
- Metallic locking mechanism
- Personalization available

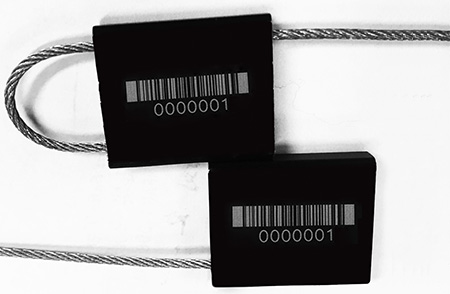

Aluminum Cable Seal
Metallic seal in an anodized aluminum with a stainless steel locking system, and a seven-strand stainless steel wire, with 1.5mm of diameter and variable sizes according to the clients’ requirements. Please, consult us on other sizes. Tensile strength: 250kgf.
Safelock M Cable Seal
Metallic seal in polycarbonate, with a locking mechanism in zamac and a sealing cable in stainless steel wire or in a seven-strand galvanized wire, measuring 1.6mm in diameter and variable according to the clients’ needs. Tensile strength: 227 daN.
Safelock G Cable Seal
Metallic seal, in an anodized aluminum, covered in polycarbonate. It can feature a seven strand stainless steel or a galvanized steel cable, measuring 1.5mm in diameter and variable lengths according to the clients’ needs. Tensile resistance: 250kgf.
Safelock G SLM ST #071SLM1520STPC – It features a seven-strand galvanized stainless steel wire that unravels when cut, what prevents its reconstruction. The strand measures 20cm in length and 1.5mm in diameter. Personalization and alphanumeric codes are laser marked on the seal. Barcode is optional (#071B11520STPC ).
Safelock G SLM GV #071SLM1520GVPC - It features a seven-strand galvanized sealing cable that unravels when cut, what prevents its reconstruction. It measures 20cm in length and 1.5cm in diameter. Personalization and alphanumeric codes are laser marked on the seal. Barcode is optional (#071B11520GVPC).
Aluminum Lite Seal
Metallic seal, with its body in anodized aluminum and a closing system in zamac. The sealing thread is made of nylon, with a diameter of 1,5mm and it is available in different sizes, according to the client’s needs. Minimum tensile strength of 60 daN.
Aluminum SLM NY Security Seal #XALSLMNY1520 – Metallic seal, with its body in anodized aluminum and a closing system in zamac. The sealing thread is made of nylon, with a diameter of 1,5mm and it is available in different sizes, according to the client’s needs. Minimum tensile strength of 60 daN. Optional: seals with barcode (#XALB1NY1520).
Quantity: 200 pieces (minimum)
Colors/codes: white, yellow and blue (W, YL and BL)
Personalization: Laser marked standard numbering and letters
a) Cable Seals: Box of 500 seals
Quantity: 1,000 pieces (minimum)
Colors/Codes: White, yellow and blue (W, YL and BL). Other colors are available under consulting.
Personalization: Laser marked numbering and/or logo
Numbering: Laser marked sequential numbering and barcode (cable seals)
a) Cable seals: Box of 500 seals
||Cable||Numbering and personalization|
|Galvanized|| Laser Marked
|XAU05BK||Aluminum 1.5 ST||No||Stainless Steel|
||072SLM1520STPC||Safelock M SLM||No||Stainless Steel|
|072B1281520STPC||Safelock M CB||Yes|
|072SLM1520GVPC||Safelock M SLM||No||Galvanized|
|072B1281520GVPC||Safelock M CB||Yes|
|Safelock G||071SLM1520STPC||Safelock G SLM||No||Stainless Steel|
|071B1281520STPC||Safelock G CB||Yes|
|071SLM1520GVPC||Safelock G SLM||No||Galvanized|
|071B1281520GVPC||Safelock G CB||Yes|
|Aluminum Lite||XALSLMNY1520||Aluminum Lite SLM||No||Nylon|
|XALB1NY1520||Aluminum Lite CB||Yes|
|Aluminum Cable Seal 1.5, 250 Kgf||Aluminum Cable Seal 3.5, 1000 Kgf|
